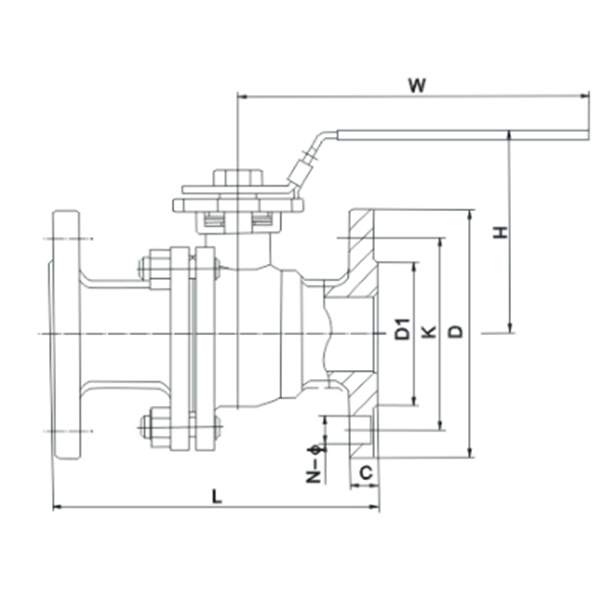

3PC Ball valve with flange and high mounting pad
- Model
- Q41F
Item specifics
- Working pressure:
- 200 PSI
- Temperature Range
- -40 to 180 ℃
- Strength testing pressure:
- PT2.4, 3.8, 6.0, 9.6 MPa
- Seat testing pressure (low pressure)
- 0.6MPa
Review
Description
1000 wog 200 PSI T type 3 way stainless steel ball valve
1)Investment casting body and cap
2)Working pressure: 200 PSI
3)Adjustable stem packing
4)Pure teflon seals and seats
5)Temperature range : -40 to 180 ℃
6)Blow-out proof stem
7)100% leakage tested at 100PSI air under water
8)Locking device (optional)
9)Ball type:1/4" to 1" are solid ball,1-1/4" to 2" are empty ball
| Description of parts | Q41F-(16-64)C | Q41F-(16-64)P | Q41F-(16-64)R |
| Body | WCB | CF8 | CF8M |
| Bonnet | WCB | CF8 | CF8M |
| Ball | SS304 | SS304 | SS316 |
| Stem | SS304 | SS304 | SS316 |
| Seating | PTFE | PTFE | PTFE |
| Packing | PTFE | PTFE | PTFE |
